Facades
The façade – or the front of a building – is one of the most important parts of building design. A popular requirement in the modern home or office, our ventilated façades help protect buildings as well as let them breathe. Ventilated façades are elegant and adaptive systems. The innovative wall-cladding enables air circulation between the outside of the façade and the interior wall of a building. By cladding your building with a ventilated façade, you’re supporting it with a range of long-term benefits including temperature control, moisture prevention and protection against the elements. Find your perfect ventilated façade today.
Skylights
Skylights
A skylight is a roof opening with transparent or tinted glass. Skylights have found widespread use in industrial, commercial and residential buildings, especially in buildings facing north. The installations range from purely functional to sophisticated aesthetic forms. Flat roof buildings can benefit from domed skylights and they’re often used as part of a smart air control system – the choice is yours.
We can customise your skylight in a number of ways to meet your requirements.
Technical specification
For more technical information please download specification sheets (Schüco FW50/60+ SG):
For more technical information please download specification sheets (Schüco FW50/60+):
Unitized System
Unitized Curtain Walls
A unitized curtain wall system, also known as a panel system or modular system, consists of panels of glass, transoms and posts that are prefabricated and delivered to the construction site.
We can customise your unitized curtain walls in a number of ways to meet your requirements.
Technical specification
Framed options | Face width of 80mm or 65mm |
Glass size per field | 2000mm x 3000mm (with the standard size glass) |
Maximum glass load | 1000kg |
Glass thickness | 22-70mm |
Uf value | Max 0.81 W(m2K) |
For more technical information please download specification sheets (Schüco UDC 80):

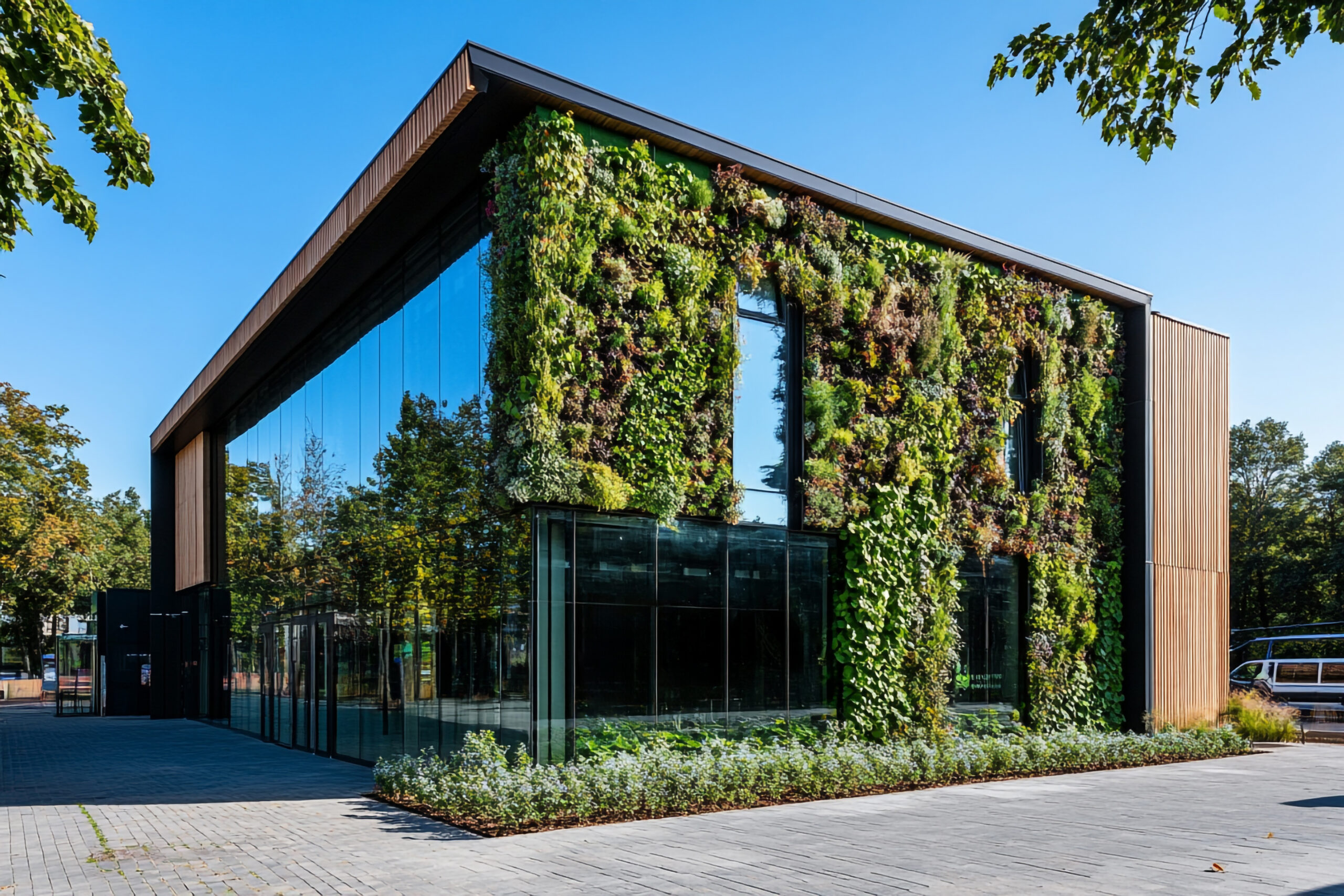

Greenwall
Greenwall
Greenwall façade systems bring nature into architecture, transforming ordinary building exteriors into vibrant, plant-covered surfaces. These living walls are more than just a design feature; they combine sustainability, functionality, and beauty to create healthier and more eco-friendly spaces
Benefits
Stick System -Polygonal, Structural, Standard
Standard Curtain Walls
Standard curtain walls
A standard curtain wall is a non-load-bearing exterior wall cladding that is hung to the exterior of the building, usually spanning from floor to floor.
We can customise your standard curtain walls in a number of ways to meet your requirements.
Technical specification
Profile face width | 50mm |
Maximum size of the curtain wall | Dependent on the static calculation |
Glass size per field | 2000mm x 3000mm |
Maximum glass load | 1000kg |
Glass thickness | Max 82mm |
Uf value | Max 0.70 W(m2K) |
Compatible with windows | AWS standard, AWS 114 |
Wind load resistance | Max 3600Pa |
Water tightness | 1950Pa |
Air permeability | 600Pa |
Burglar resistance | RC2(WK2), RC3 (WK3) |
For more technical information please download specification sheets (Schüco FW50/60+):
Structural Curtain Walls
Structural Curtain Walls
Structural curtain walls, in their simplest form, are types of curtain wall systems that consist of glass that is bonded or anchored to a structure without the use of continuously gasketed aluminium pressure plates. Visually, they create greater transparency than traditional systems.
We can customise your structured curtain walls in a number of ways to meet your requirements.
Technical specification
Profile face width | 50mm |
Maximum size of the curtain wall | Dependent on the static calculation |
Glass joint width | 20mm wet sealing or dry sealing |
Glass size per field | 2000mm x 3000mm (with standard size glass) |
Glass thickness | 2000mm x 3000mm (with standard size glass) |
Maximum glass load | Maximum glass load: 1000kg |
Glass thickness | Max 64 with comprehensive glazing support system |
Uf value | Uf value: max 0.70 W(m2K) |
Compatible with windows | AWS standard, AWS 114 |
Wind load resistance | 3,0kN/m2 |
Water tightness | 1200Pa |
Air permeability | 750Pa |
Burglar resistance | RC2(WK2) |
For more technical information please download specification sheets (Schüco FW50/60+ SG):
Polygonal Curtain Walls
Polygonal,Orthogonal,Curved
A polygonal or orthogonal curtain wall is a non-load-bearing exterior wall cladding that is hung on the outside of the building and typically extends from floor to floor. Vertical frame elements of the curtain wall pass the surface of the floor slabs and the anchoring is normally only provided on vertical frame elements. This system is used for round or wave-shaped building structures.
We can customise your curved, polygonal, orthogonal in a number of ways to meet your requirements.
Technical specification
Profile face width | 50mm |
Maximum size of the curtain wall | Dependent on the static calculation |
Glass size per field | 2000mm x 3000mm (with standard size glass) |
Glass thickness | Max 82 with comprehensive glazing support system |
Maximum glass load | Maximum glass load: 1000kg |
Glass thickness | Max 64 with comprehensive glazing support system |
Uf value | Uf value: max 0.70 W(m2K) |
Compatible with windows | AWS standard, AWS 114 |
Wind load resistance | Max 3600Pa |
Water tightness | 1950Pa |
Air permeability | 600Pa |
Burglar resistance | RC2(WK2), RC3 (WK3) |
For more technical information please download specification sheets (Schüco FW50/60+):
